Aluminium Doors

The separation that used to determine indoor and outdoor living has been abolished to a great extent and the modern terrace or balcony door has been the leading factor that determined this relationship. No longer are these sophisticated systems mere barriers against elemental forces; they have since turned into engineered components that lay the aesthetic of a building, illuminate naturally, and offer passive heat control. Cutting-edge architecture entails big and bold glass surfaces that only first-rate aluminium door and window systems can perform this dream without losing either building strength or energy efficiency, a feature that is always present in the premier lines of products.

The right windows and doors (the fenestration system) have to be chosen in any modern construction, whether it be a house or a public structure. It is a question of balancing the visual craving with the light, wind, and heat insulation, security, and durability needs. This all-inclusive manual takes you through the basic technologies and the various operating systems that empower both architects and homeowners to be creative with the design on the ground of technology.

The Thermal Revolution: Why a “Break” Changes Everything

For a long time, standard aluminium was chastised for inadequate insulation more than once. Heat simply flowed through the metal frame, which created a “thermal bridge” leading to significant energy loss and constant discomfort. The direct heat path led to the warm interior in winter and the cold exterior in summer, and heat flow was also reversed in summer.

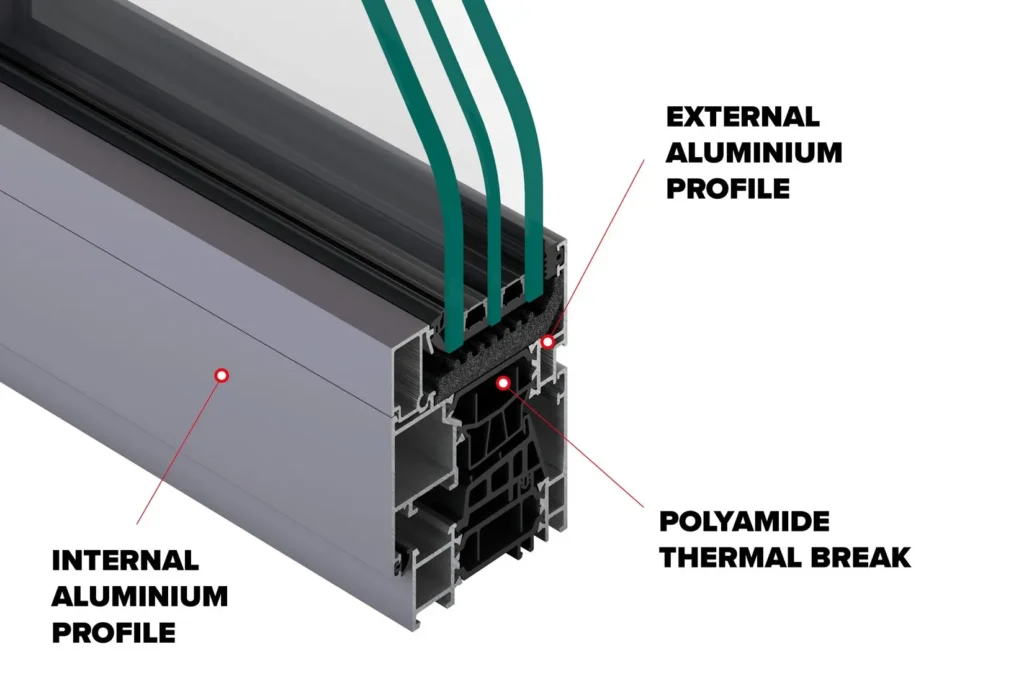

The introduction of the thermally broken frame marked a turning point in the struggle against aluminium’s poor thermal conductivity. This sophisticated technology interrupts the metal pathway by inserting a low-conductivity material frequently Polyamide (PA66 with glass fiber) or Polyurethane (PU) right inside the aluminum profile. The barrier created by the non-metallic strip effectively keeps the inner and outer parts of the frame apart. Thus, the thermal break greatly increases the frame’s thermal resistance, leading to a vastly improved U-Factor, which is one of the most important factors that are measured and certified according to the set industry standards (Source: Quality standards: NFRC and AAMA Certified).

The U-Factor is the criterion that reflects how well heat is prevented from passing through a window or door. Therefore, a lower U-Factor indicates better insulation of the product, which is one of the main priorities of the National Fenestration Rating Council (NFRC). A thermal break results in the frame’s insulating power being multiplied, thus heat loss being reduced and internal temperature being uniformed more. This excellent insulation directly translates into very noticeable benefits for the homeowner: the highest comfort level, the lowest energy bills, and the creation of an eco-friendlier house because of reduced HVAC systems dependence.

Another major benefit is the management of condensation. In the past, non-thermally broken frames would allow the metal profile on the inside to become so cold that the warm, moisture-laden air from inside would deposit water drops on it. This water then causes the growth of mold and deteriorates the building. The thermal break, on the other hand, that keeps the inside profile warmer significantly reduces the chance of condensation. This is an important factor for the house to be healthy and, at the same time, not to annoy the owner by requiring maintenance. Besides, the superlative, very thick thermal break materials that are not only strong but also long-lasting and the system will surely built to last.

The Sliding Spectrum: Lift-and-Slide versus Classic Sliding Doors

Two primary systems that dominate the market are traditional sliding doors and lift-and-slide doors when it comes to large-format doors for a terrace. Though both create large openings, they fundamentally differ in the way they function and perform, thus the choice is made according to the scale and performance priorities.

Traditional (Inline) Sliding Doors

The process leads to low U-values, that is, a small amount of heat transfers through the window system. Therefore, for you, the following benefits are quite visible:

Pros:

• Simplicity and Cost: Usually hardware is simple and thus less expensive.
• Space-Saving: No need for a swing room for the operation.

Cons:

• Limited Sealing: Movement, being continuous, requires a gap, thus less airtightness and not very suitable for highly energy-efficient applications or exposed locations.
• Panel Size Restrictions: Normally, a maximum panel weight of 100 kg to 200 kg is allowed, which restricts the size of the glass. Moreover, the moving is harder as the panels go heavier requiring more effort.

Lift-and-Slide Systems

Lift-and-slide systems are the premier option when it comes to very high performance and notable sliding doors. The operation of this kind of sliding door involves turning the special handle by the user, which lifts the door panel slightly (usually 8-10 mm) on to the heavy-duty rollers, thus allowing it to be opened by sliding. When closed, the panel is dropped down, thus creating a complete perimeter compression seal.

Pros:

• Outstanding Sealing and Insulation: The compression seal, which is the main aspect of lift-and-slide design, provides extremely good weather resistance, thermal efficiency, and sound insulation. Consequently, the system is perfect for hard or very open places.
• Huge Panel Capacity: The modern hardware can support very heavy panels, with many systems allowing up to 400 kg, and top-quality systems permitting up to 1200 kg for each leaf. Thus, capable of the biggest glass areas and the slightest vertical interruptions.
• Easy Operation: The weight is enormous, yet the lifting mechanism reduces friction, thus making the sliding and gliding smooth and easy.

Cons:

• Higher Price: The complex engineering and hardware lead to a higher initial cost of materials and installation.
• Size of Opening: Normally the opening space is maximum 50% of the total span unless a wall pocket design is applied.

Considering the high energy savings, long service life, and outstanding operation, often the initial investment in a lift-and-slide system is justified by the comfort it provides and the reduced operating costs in the long run.

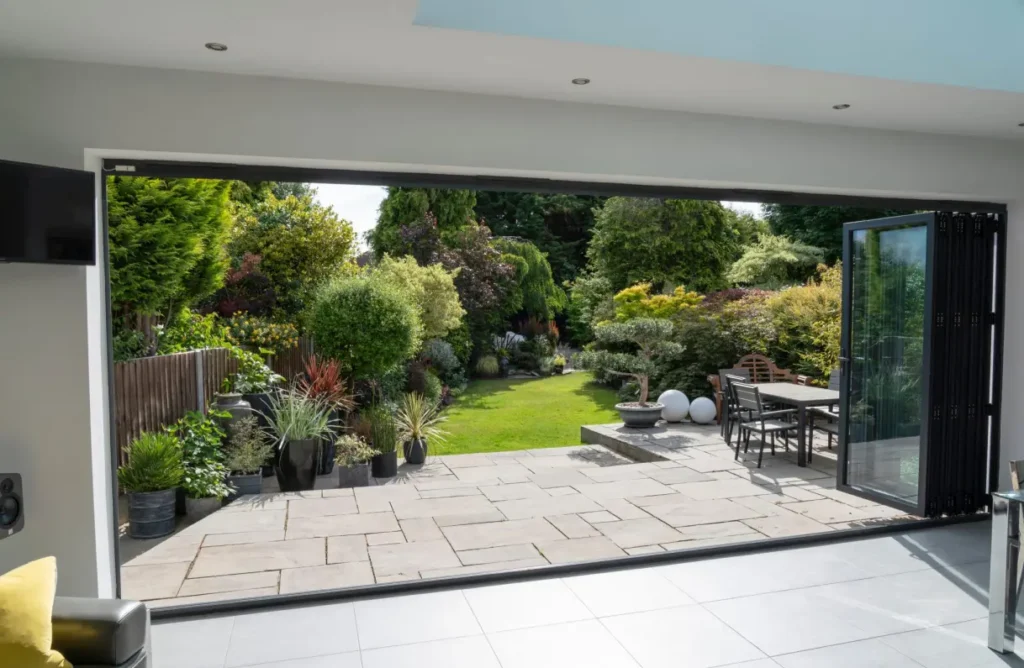

The Bi-Fold Alternative: Folding Systems

One of the main functions of sliding doors is to allow for the maximum amount of glass and views, while bi-fold doors (or sliding-folding doors) achieve the opposite function of maximizing the clear opening completely.

Folding doors made of several panels work like an accordion, stacking them up to one side of the opening and clearing the entire space. This method is usually chosen when including the full width of opening, as the air circulation is at its best and also it creates the most perfect transition between indoors and outdoors, patio in this case.

Key Features and Trade-Offs

• Panel Size: The panels of aluminium bi-fold doors are typically between 700mm and 1200mm wide. The robust frames of aluminium make possible large heights with many of the doorsaures offering a maximum height of the range of 2750mm to 3000mm while some even go above 4 meters with the aid of reputable manufacturers’ heights.
• Traffic Door: A hinged “traffic door” or “access door” is usually included in most bi-fold systems. This feature provides a very practical solution for everyday use by allowing for quick and regular entry and exit without having to fold back the whole set of panels.
• Space Impact: Bi-fold doors require space for movement similar to the sliding ones but in that case depending on the location of their folding—either indoor or outdoor. The resulting stack needs to be factored into the design of the terrace or interior room.
• Cost: At times, a long run of bi-fold doors can prove to be more expensive than a big simple lift-and-slide door with the many panels and the complexity of the folding hardware being the reasons.

Eventually, the decision for either lift-and-slide or bi-fold systems will be made through the main consideration: Lift-and-slide for the most unobstructed glass and thermals, or bi-fold for the widest clear opening.

Designing at Scale: The Dimensions of Possibility

Modern aluminium systems have really impressive capabilities, no longer limiting architects to the dimensions of older frame materials. The powerful ratio of strength-to-weight of the material allows the manufacturers to create ultra-slim, minimalist profiles that are capable of bearing large sheets of glass.

When it comes to sliding systems, the limits are really drawn to the maximum of the performance. For different models and brands, the single sliding units can be made up to 3.3 meters wide and reach heights of 4 meters. Such a large scale makes it possible to create visually highly attractive opening up between the interior and outdoor spaces, for instance, patios, balconies, or conservatories.

Larger dimensions are not synonymous with lesser durability. The enormous panels do not impair the system’s integrity in any way, as in the case, for instance, of high-end door panels that may reach weights of 1200 kg. Nevertheless, a powered operating drive is also an option so that the opening and closing will still be smooth, effortless, and easy to operate.

Just like the frame, the glazing needs to be very strong. The latest generation of components offers a variety of glazing thicknesses, and the range is usually between 13.5 mm to 61.5 mm. The thickness is a feature that makes the system fit for the most advanced double and triple glazing units, hence the thermal and sound insulation performance could be fine-tuned to any climate or acoustic requirement. This amount of personalization turns the door into a structural element as well as a highly specialized component of the building’s envelope.

The Language of Performance: Industry Standards and Certifications

Besides relying on the marketing claims, it is necessary to pressure the manufacturers for the products that conform to the recognized industry standards if one wants a door or window system to be performed as promised. The fenestration industry is under the control of organizations that not only give the consumers third-party validation and certification but also provide them with the objective, credible data.

The National Fenestration Rating Council (NFRC)

The NFRC is the foremost independent, non-profit organization for the energy performance certification of windows and doors (Source: National Fenestration Rating Council). The NFRC label is a vital tool for energy-efficient products comparison and it provides the following three main performance ratings:

• U-Factor: This indicates how well a product prevents heat from escaping. The lower the U-Factor, the better the insulation.
• Solar Heat Gain Coefficient (SHGC): This indicates how much heat a product lets pass from the sun. In hot regions, a low SHGC is wanted to keep the house cool and to be in good defense against unwanted solar radiation.
• Visible Transmittance (VT): This indicates the level of visible light that the product lets through. The higher the VT, the more natural light the area receives.

The American Architectural Manufacturers Association (AAMA) and NAFS

The AAMA, or the American Architectural Manufacturers Association, has also been joined by North American Fenestration Standard (NAFS) in its activities at the Fenestration and Glazing Industry Alliance (FGIA).

NAFS, a major Warner standard in North America, is a product of AAMA’s collaboration with others. NAFS sets the necessary performance characteristics for fenestration products like windows, doors, and skylights so that they can successfully endure the load and weather conditions that are typical of their respective regional climates (Source: Quality standards: NFRC and AAMA Certified). The following are the significant AAMA and NAFS parameters:

• Design Pressure (DP): This is the maximum structural load a window or door can bear, particularly the resistance against wind loads. The higher the value, the greater the resistance.
• Air Permeability and Water Tightness: These ratings refer to a door’s capacity to stop air and water leaks under pressure. Achieving high ratings in these areas signals the system’s excellent sealing, which is a necessary performance aspect for any door.

Homeowners and builders who opt for NFRC certified products that comply with AAMA/NAFS standards can be sure that they are investing in systems that will last through time, resist the toughest weather conditions, and be as energy efficient as possible since these are the best technical benchmarks.

Choosing a current aluminum door system can be a tedious process but at the end of it, the benefits are huge. To put it simply, the combined features of aesthetic value, large sizes, safety and energy efficiency coming from high-quality thermally broken frames definitely count these doors as a long-term investment that not only adds up the property’s worth but also making it more enjoyable to live in.

To talk about your project’s particular specifications and find out what our precision-engineered aluminum doors can do for your next construction, make sure you contact our team today. We are excited to communicate with you.
