Mastering the Modern Façade: Aluminium Systems for High-Performance Architecture

The building façade is more than just the skin of a structure. It is a highly specialized, dynamic interface between the indoor environment and the elements. In modern, complex, and high-rise construction, the choice of the curtain wall system is arguably the single most critical engineering decision that dictates a building’s energy consumption, occupant comfort, and structural resilience. Modern architecture, characterized by expansive glazed surfaces and intricate geometries, relies heavily on advanced aluminium façade systems to achieve both stunning aesthetics and demanding technical specifications.

Aluminium is the preferred material for this purpose because of its exceptional strength-to-weight ratio, which allows for minimalist framing profiles to support large glass panels without imposing excessive loads on the building’s main structure. It is also inherently corrosion-resistant and highly durable, ensuring the envelope maintains its integrity and appearance for decades. This guide explores the engineering principles, construction methodologies, and performance standards that define the world of high-performance aluminium façades.

The Foundation of Modern Architecture: Defining the Façade

A façade system, or curtain wall, is fundamentally a non-structural exterior covering. Because it carries no load other than its own weight and the forces exerted upon it (wind, snow), it can be made of lighter materials. The wall transfers lateral wind loads to the main building structure via connections at the floors or columns. This design principle allows architects unprecedented freedom to create light, expansive, and visually striking elevations.

Unlike traditional load-bearing walls, a modern aluminium façade is a system designed to manage a complex array of factors:

• Structural Movements: It must accommodate building sway, thermal expansion and contraction, and seismic requirements without failure.
• Weathering: It must provide complete defense against water penetration, air leakage, and wind pressure.
• Energy Balance: It must optimize the balance between maximizing natural daylight and minimizing unwanted solar heat gain.

The result is a highly complex, multi-layered building envelope where the performance of the system is entirely dependent on the precision of its components and assembly.

Engineering the Envelope: Façade System Types

The most significant decision in façade engineering revolves around the choice between two primary construction methodologies: the classic stick-built system and the innovative unitized system.

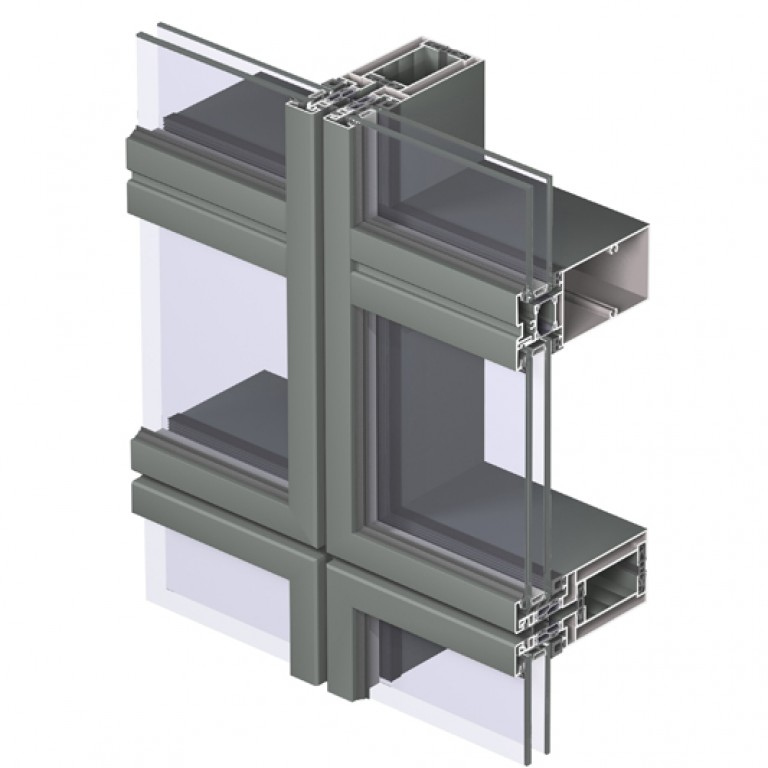

Stick-Built Systems: Flexibility and Customization

The stick-built system, often referred to as a mullion and transom façade, is the traditional method where the curtain wall is assembled piece-by-piece on the construction site.

How it Works: Individual vertical (mullion) and horizontal (transom) aluminium components, along with glass panels and spandrel elements, are sequentially installed onto the building structure.

Key Advantages:

• Design Flexibility: Because it is assembled component by component, this system is exceptionally adaptable to complex, angled, or non-standard geometry. It is ideal for bespoke or low-rise projects where the design is highly customized.
• Logistics and Cost: The smaller components are easier and cheaper to transport to the site. Stick-built systems are often more cost-effective for small to medium-sized projects (typically under 5,000 m²) or in regions where skilled on-site labor costs are low.
• On-site Adjustments: Minor site conditions and misalignments can be accommodated and corrected during the assembly process.

Considerations:

• Installation Time: Assembly is highly labor-intensive and time-consuming, making it slow for high-rise buildings.
• Quality Control: Sealing and weatherproofing rely heavily on the skill of the on-site installers, increasing the risk of errors and potential air or water leaks.

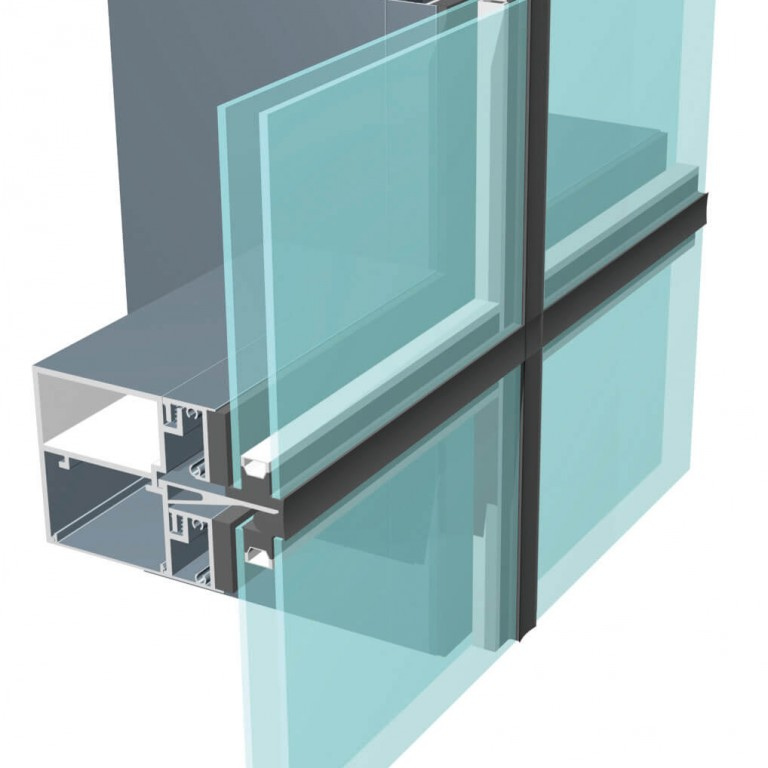

Unitized (Panelized) Systems: Speed and Quality Control

The unitized curtain wall system is the method of choice for high-rise buildings, large-scale commercial projects, and structures demanding exceptional speed.

How it Works: Entire façade modules (often one or two floor-to-floor units in size) are fully fabricated, glazed, and sealed in a controlled factory environment. These complete pre-fabricated units are then shipped to the site and rapidly hoisted and locked into place using interlocking joints.

Key Advantages:

• Rapid Installation: Since the panels are complete when they arrive on site, installation can proceed at an astonishing pace (often faster than traditional construction), reducing overall project timelines.
• Superior Quality Control: Fabrication and sealing are done under strict, controlled factory conditions, virtually eliminating on-site errors and ensuring consistent performance, particularly for air and water tightness.
• High-Rise Suitability: Installation requires minimal scaffolding and is often performed from the inside of the building, making it the safest and most efficient solution for tall towers.

Considerations:

• Logistics and Cost: Unitized panels are large, requiring specialized transport and craning equipment, which increases initial logistics costs. The bespoke factory tooling also makes them more economical only on projects larger than a certain scale.
• Repetition: The system is most efficient when the floor heights and module dimensions are highly repetitive (the “typical floor” scenario).

Structural and Semi-Structural Glazing

These systems are defined by their visual style rather than their construction method. They are primarily used to achieve a clean, uninterrupted seamless glass appearance.

• Structural Glazing (SSG): The glass panels are bonded to the aluminium sub-frame using high-strength, weather-resistant silicone sealant instead of visible mechanical fasteners or pressure plates. This technique creates a flush, all-glass surface, maximizing aesthetics.
• Semi-Structural Glazing: This is a hybrid approach where vertical or horizontal aluminium caps are visible (creating a subtle grid), but the opposing axis uses structural silicone, offering a balance between the pure glass look and cost-effective assembly.

Beyond Aesthetics: The Core Performance Metrics

A façade’s performance is measured by its ability to insulate, protect, and resist environmental forces. Modern aluminium profile systems are engineered to meet these challenges simultaneously.

Thermal Efficiency and the Insulated Core

The most crucial performance aspect in façade design is thermal performance. Like doors and windows, the aluminium structure itself is highly conductive, requiring specialized technology to prevent heat loss or gain.

This is achieved using thermal break technology, where low-conductivity materials (like reinforced polyamide strips) are integrated within the aluminium profiles. This interrupts the continuous metal path, significantly reducing the system’s U-Factor (thermal transmittance) and improving overall energy efficiency. High insulation façade systems combine these thermal breaks with advanced triple glazing and highly insulating spandrel panels (the opaque sections of the curtain wall between floors) to achieve low U-Values required for sustainable and passive building design.

Resilience and Safety (Wind Load, Water, Fire)

A high-quality façade must be a fortress against the elements and hazards.

• Wind Load Resistance: Façades must be designed to withstand immense wind pressures, especially on high-rise structures. Testing procedures involve applying both uniform static air pressure and dynamic pressure to ensure the system does not structurally fail or leak under extreme weather.
• Water Tightness and Air Permeability: These factors are paramount. Façade joints and seals must prevent any uncontrolled air or water leakage. Performance is measured in Pascals (Pa), with many high-end systems achieving air tightness up to AE 1200 Pa and watertightness up to RE 1500 Pa or more.
• Fire Safety: For commercial and multi-story residential buildings, fire resistance is mandatory. Fire-rated curtain walls are specialized assemblies that incorporate intumescent materials, fire-resistant glass, and dedicated barriers (fire-safing) at floor lines. These systems are tested as a complete assembly to confirm they can block the transfer of flames, smoke, and heat for a specific duration (e.g., EI30 or EI60 class systems).

Acoustic Control and Interior Comfort

In dense urban environments, acoustic insulation is essential for occupant well-being. Façade systems address noise pollution through several design features, including: thicker, laminated glass, varying the air gap in double-glazing units, and using specialized acoustic seals. For buildings near airports or busy highways, high-performance systems can be engineered to meet specific acoustic performance targets, ensuring a quieter, more productive interior environment.

The Global Language of Standards: Certification and Compliance

To ensure performance claims are credible and the building is safe, the façade system must be certified by independent, international bodies.

North American Standards: AAMA and ASTM

In North America, the primary standards are set by the American Architectural Manufacturers Association (AAMA) and ASTM International (formerly the American Society for Testing and Materials). These standards define the test methods for validating performance.

Key ASTM tests focus on structural and weather resistance:

• ASTM E283 measures the rate of air leakage.
• ASTM E330 measures structural performance under static air pressure.
• ASTM E331 and ASTM E547 measure water penetration under static and cyclic pressure differences.

Manufacturers must demonstrate compliance with these rigorous testing protocols, often simulating real-world conditions like dynamic wind and rain forces (Source: Testing Standards – FACADE PERFORMANCE LAB). Selecting a façade system that has successfully passed these demanding tests provides assurance of its long-term durability and performance.

European Standards: EN and CE Marking

Across Europe, compliance is governed by harmonized European Norms (EN standards) and verified through the CE Marking process, which signifies a product’s conformity with EU health, safety, and environmental protection standards.

The key product standard is EN 13830, which specifies the requirements for the curtain walling kit used as a building envelope. This standard provides the test and calculation methods for all related performances, including:

• Air Permeability (EN 12152)
• Water Tightness (EN 12154)
• Resistance to Wind Load (EN 13116)

Compliance with EN 13830 ensures that the complete system meets strict technical and safety criteria before it is installed on a building (Source: EN 13830: Curtain Walling – Product Standard – Intertek).

The decision to install an advanced aluminium façade system is an investment in the longevity, sustainability, and aesthetic quality of the entire structure. From the structural integrity of a unitized system on a high-rise to the thermal efficiency of a stick-built system on a commercial campus, these solutions are the engines that power modern architectural ambition.
